Quick Answer：A floor-standing mobile cabinet battery is a high-capacity lithium iron phosphate (LiFePO4) energy storage system integrated into a heavy-duty IP22 enclosure with a mobile cabinet design and reinforced casters. Operating at a nominal voltage of 51.2V with storage capacities of 15.0kWh (300Ah) or 18.0kWh (346Ah), these mobile units provide up to 200A continuous discharge current, CAN/RS485/RS232 communication, and Master-Slave BMS parallel scalability for modular energy expansion.
1. Structural Engineering & Floor Load Dynamics of Floor-Standing Mobile Cabinets
1.1 Mass Distribution and Floor Loading Calculations (129kg to 163kg)
High-capacity floor-standing battery cabinets create different installation requirements than smaller wall-mounted battery modules because their mass is transferred directly to the floor rather than to a wall structure. A large amount of battery mass is concentrated within a relatively small cabinet footprint, making floor-load assessment a standard part of the installation process. The Haven Deer MB512300 (15.0kWh) weighs 129kg, while the MB512346 (18.0kWh) weighs 163kg. Engineering teams and field installers should verify floor structural capacity before delivery, positioning, and commissioning.

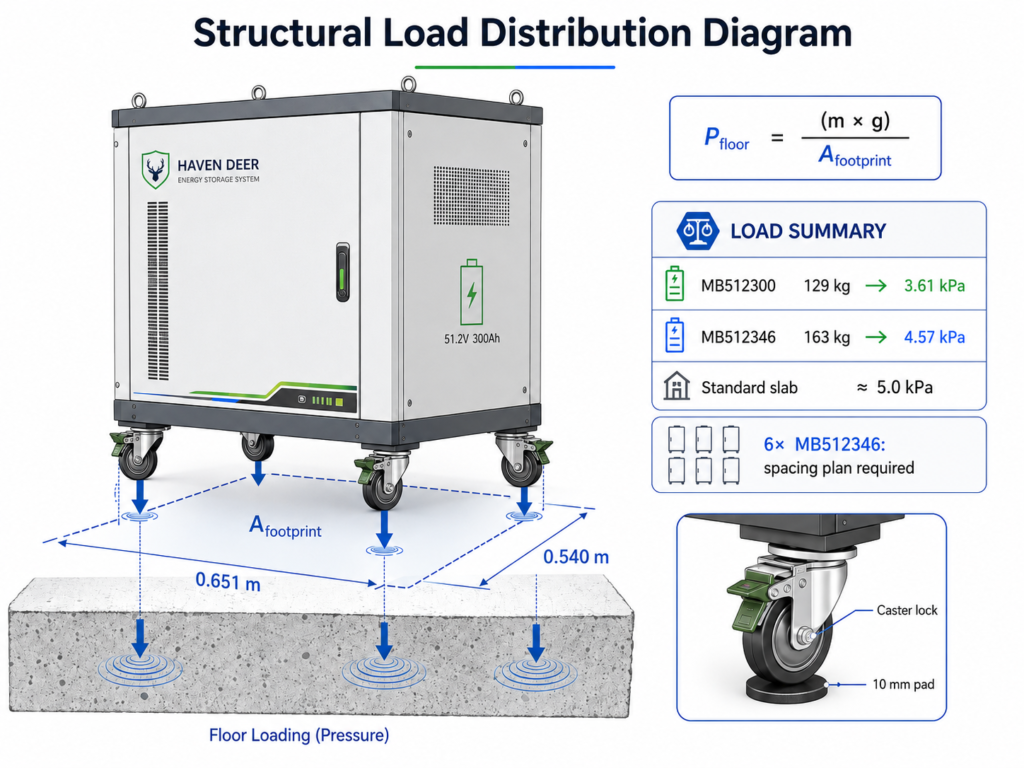

To evaluate structural loading compliance, engineers calculate floor load pressure using the base footprint area of the cabinet. The static floor pressure can be estimated with the following equation:
P_floor = (m × g) / A_footprint
Where:
P_floor: Static floor loading pressure in Pascals (Pa) or Kilopascals (kPa).
m: Total cabinet mass in kilograms (kg).
g: Gravitational acceleration constant (9.81m/s²).
A_footprint: Base contact footprint area of the cabinet enclosure in square meters (m²).
Using an MB512346 as an example, a cabinet mass of 163kg and an effective floor footprint of approximately 0.651m × 0.540m produce a contact area of about 0.35m² across the caster spread.
P_floor = (163kg × 9.81m/s²) / 0.35m² = 4568.6Pa = 4.57kPa (approx. 466kg/m²)
Many reinforced concrete floors used in commercial equipment rooms are designed for load ratings around 5.0kPa (500kg/m²) or higher, but the actual structural rating must be confirmed for each site. A single MB512346 unit may fall within common commercial floor-loading ranges, but site-specific verification is still required before installation. When multiple cabinets are deployed in a parallel battery bank, cabinet spacing and distributed load layout should be reviewed to avoid concentrated loading in one area.
| Cabinet Model | Nominal Energy | Pack Weight | Base Footprint (L × W) | Calculated Static Pressure | Standard Floor Compliance |
|---|---|---|---|---|---|
| MB512300 | 15.0kWh | 129kg | 0.651m × 0.540m (~0.35m²) | 3.61kPa (368kg/m²) | Site verification required |
| MB512346 | 18.0kWh | 163kg | 0.651m × 0.540m (~0.35m²) | 4.57kPa (466kg/m²) | Site verification required |
| 6 × MB512346 Bank | 108.0kWh | 978kg | Array spacing required | Distributed array calculation | Structural layout plan required |
1.2 Heavy-Duty Caster Rating, Vibration Isolation, and Mobility Protocols
Heavy-duty structural casters improve deployment flexibility and serviceability for floor-standing cabinets compared with wall-mounted battery modules or fixed battery installations. This design avoids the wall-anchoring procedures required for heavy wall-mounted packs, such as the 102kg AL-WM512200 . Even so, mobile cabinet deployment still requires attention to caster dynamic load ratings, wheel-locking mechanisms, and final-position stabilization.
Floor-standing mobile cabinet batteries use heavy-duty polyurethane casters with reinforced swivel structures to support positioning, relocation, and maintenance access. Polyurethane wheel treads help reduce minor transmitted vibration during movement while lowering the risk of surface damage on coated equipment-room floors.
Engineering Tip: Always engage the mechanical locks on all casters after the cabinet is moved into its final operating position. In environments exposed to continuous mechanical vibration, such as generator rooms or agricultural processing areas, place 10mm neoprene anti-vibration pads beneath the caster contact points. This prevents long-term mechanical creep and helps reduce vibration stress on internal terminal busbars.
2. Electrochemical Performance: Grade A Prismatic Cells & 51.2V 16S Architecture
2.1 300Ah vs. 346Ah Cell Configuration & Nominal Voltage Bands
Haven Deer mobile cabinet batteries use Grade A prismatic Lithium Iron Phosphate (LiFePO4) cells as the core electrochemical storage technology. The electrochemical core utilizes a 16S (16 series-connected cells) configuration. Because each individual prismatic cell operates at a nominal voltage of 3.2V, connecting 16 cells in series creates a nominal system voltage of:
16 × 3.2V = 51.2V DC
The operating voltage window for the 16S configuration spans from 44.0V DC to 58.4V DC according to the battery operating parameters. The recommended charge voltage for the 51.2V battery platform is 56.0V DC. Operating within this defined 51.2V nominal platform enables compatibility with standard 48V low-voltage hybrid solar inverters.
| Parameter | MB512300 Cabinet Battery | MB512346 Cabinet Battery |
|---|---|---|
| Cell Chemistry | Grade A LiFePO4 Prismatic | Grade A LiFePO4 Prismatic |
| Cell Configuration | 16S architecture (300Ah cells) | 16S architecture (346Ah cells) |
| Nominal Voltage | 51.2V DC | 51.2V DC |
| Rated Capacity | 300Ah | 346Ah |
| Total Energy Output | 15.0kWh | 18.0kWh |
| Voltage Operating Window | 44.0V to 58.4V DC | 44.0V to 58.4V DC |
| Continuous Charge Current | 150A | 150A |
| Continuous Discharge Current | 200A | 200A |
| Usable Energy (90% DoD) | 13.5kWh | 16.2kWh |
2.2 Cycle Life Longevity: 6,000 Cycles @ 90% DoD vs. 10,000 Cycles @ 80% DoD
Grade A LiFePO4 cells provide high thermal stability and long-cycle performance compared with traditional lead-acid battery technologies. The total usable energy throughput of a cabinet battery depends directly on the programmed Depth of Discharge (DoD).
To calculate total lifetime energy throughput delivered by a mobile cabinet battery over its operational lifecycle, engineers apply the formula:
E_lifetime = E_nominal × DoD × Cycles × η_roundtrip
Where:
E_lifetime: Total cumulative energy output delivered across battery life (kWh).
E_nominal: Rated nominal capacity of the battery pack (kWh).
DoD: Depth of Discharge operational ratio (e.g., 0.80 or 0.90).
Cycles: Number of complete charge/discharge cycles achieved at specified DoD.
η_roundtrip: Round-trip efficiency factor used for lifetime energy estimation.
For an MB512300 (15.0kWh) operated daily at 80% DoD over 10,000 cycles:
E_lifetime = 15.0kWh × 0.80 × 10,000 × 0.95 = 114,000kWh (114MWh)
If the same unit operates at 90% DoD with a cycle life rating of 6,000 cycles:
E_lifetime = 15.0kWh × 0.90 × 6,000 × 0.95 = 76,950kWh (76.95MWh)
Common Mistake: Configuring solar inverters to repeatedly operate LiFePO4 batteries at the maximum available depth of discharge. Repeated deep discharge operation can increase electrochemical stress and accelerate battery degradation mechanisms. Limiting daily cycling to approximately 80%–90% DoD helps optimize the balance between usable energy output and long-term battery cycle performance
3. High-Current BMS & Master-Slave Parallel Expansion Architecture
3.1 200A Continuous Discharge Handling and Busbar Sizing
The internal Battery Management System (BMS) integrated within the MB512300 and MB512346 cabinets manages cell monitoring, protection functions, and high-current battery operation. Both models support a continuous charge current of 150A and a continuous discharge current of 200A according to their battery specifications. At a nominal operating voltage of 51.2V, a 200A continuous discharge rate delivers over 10kW of continuous electrical power:
P_output = 51.2V × 200A = 10,240W (10.24kW)
Handling 200A continuous discharge requires appropriately designed internal current paths to minimize resistive losses and maintain reliable power delivery. Proper internal current-path design helps reduce localized heating and supports stable operation during high-current discharge conditions.
3.2 DIP Switch Addressing & Multi-Pack Closed-Loop Communication (CAN/RS485)

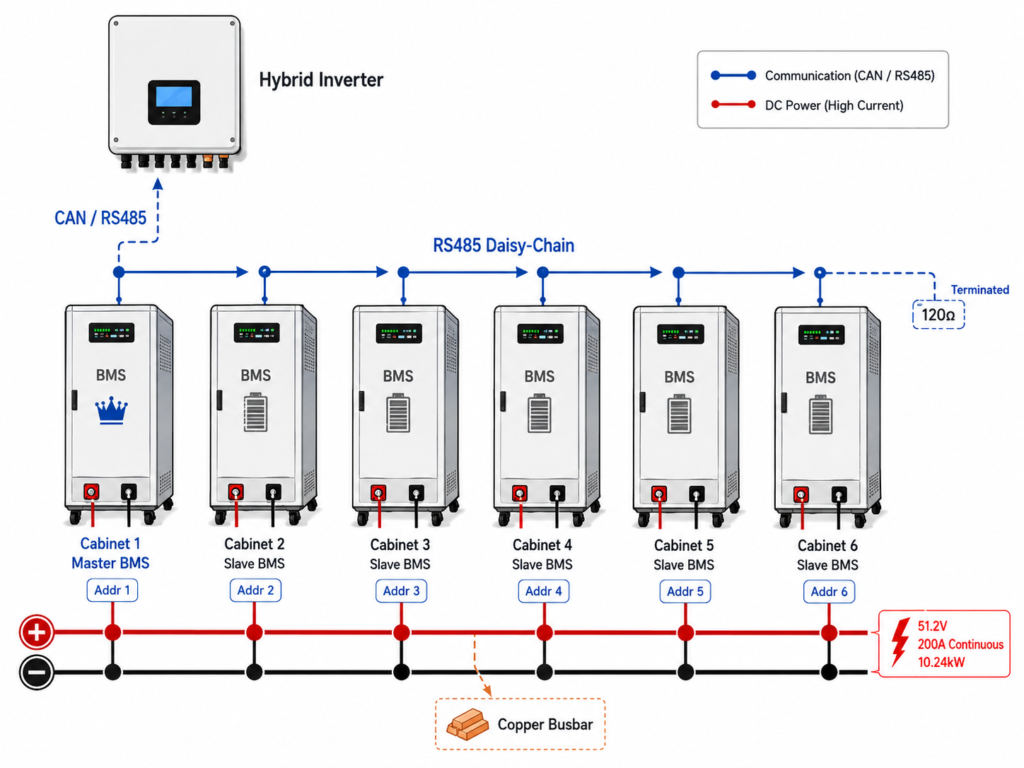

When additional storage capacity is required, multiple MB512300 or MB512346 units can be connected in parallel for modular capacity expansion. To maintain coordinated control, the system utilizes a Master-Slave BMS architecture.
In a multi-pack array, one battery pack is assigned as the Master BMS via hardware DIP switches, while the remaining packs are designated as Slave BMS units. The Master BMS aggregates operational data from connected battery units, including SOC, current, pack voltage, and cell temperature information, and communicates with the hybrid inverter through CAN or RS485 protocols.
| Cabinet Position | BMS Role | Address | Communication Connection |
|---|---|---|---|
| Cabinet 1 | Master BMS | Address 1 | CAN/RS485 to Inverter + RS485 to Pack 2 |
| Cabinet 2 | Slave 1 | Address 2 | RS485 communication link to the next battery unit |
| Cabinet 3 | Slave 2 | Address 3 | RS485 communication link to the next battery unit |
| Cabinet 4 | Slave 3 | Address 4 | RS485 communication link to the next battery unit |
| Cabinet 5 | Slave 4 | Address 5 | RS485 communication link to the next battery unit |
| Cabinet 6 | Slave 5 | Address 6 | Communication terminated at the final battery unit |
3.3 Parallel Busbar & Communication Setup Checklist:
[ ] Verify Voltage Matching: Check that the DC voltages of parallel cabinets are closely matched before connecting DC terminals together to reduce equalization current between battery units.
[ ] Set Hardware DIP Addresses: Assign unique communication addresses to each battery unit according to the BMS configuration requirements while units are powered off .
[ ] Connect Inter-Pack RS485 Cables: Daisy-chain RS485 ports between Master and Slave units.
[ ] Establish Master-to-Inverter Communication: Connect the Master cabinet communication port to the compatible Hybrid Inverter BMS communication interface using CAN or RS485.
[ ] Install Parallel DC Power Cables: Use balanced DC wiring methods, such as equal-length cables connected to a common DC busbar, to improve current sharing between parallel battery units.
4. Thermal Management & Operating Limits (-20°C to 55°C)
4.1 Passive Cabinet Airflow and IP22 Enclosure Thermal Dissipation
The enclosure of Haven Deer mobile cabinet batteries features an IP22 protection rating for indoor energy storage applications. IP22 protection provides protection against vertically falling water drops when tilted up to 15 degrees and helps prevent accidental contact with hazardous internal components.
During 150A charging or 200A discharging operation, heat generated inside the cabinet is managed through passive ventilation structures integrated into the enclosure design. Rising warm air escapes through upper ventilation openings, while cooler ambient air enters through lower intake areas. This passive convection approach reduces reliance on active cooling components and supports stable long-term operation.
4.2 BMS Thermal Protection Boundaries: Charge Cutoff (0°C) vs. Sub-Zero Discharge (-20°C)
While LiFePO4 cells operate across broad temperature ranges, charging and discharging processes exhibit different electrochemical behavior at low temperatures.
| Operational Mode | Permissible Temperature Band | BMS Action outside Operating Band |
|---|---|---|
| Battery Charging | 0°C to 55°C | BMS activates charging protection outside the specified temperature range |
| Battery Discharging | -20°C to 55°C | BMS activates discharge protection outside the specified temperature range |
| Storage Temperature | -15°C to 50°C | Follow recommended storage conditions and maintain SOC at 40%–60% during long-term storage |
Engineering Tip: In unheated equipment rooms located in cold climates, ambient winter temperatures may drop below freezing. Charging LiFePO4 cells below 0°C can cause lithium plating on the graphite anode and accelerate permanent cell degradation. Haven Deer BMS protection logic prevents charging below 0°C while allowing battery discharge operation down to -20°C according to the battery operating specifications .
5. Multi-Input System Integration: Coordinated Control with Hybrid Inverters & Generators
5.1 Interfacing Cabinet Batteries with Dual MPPT Hybrid Inverters (6kW / 12kW)

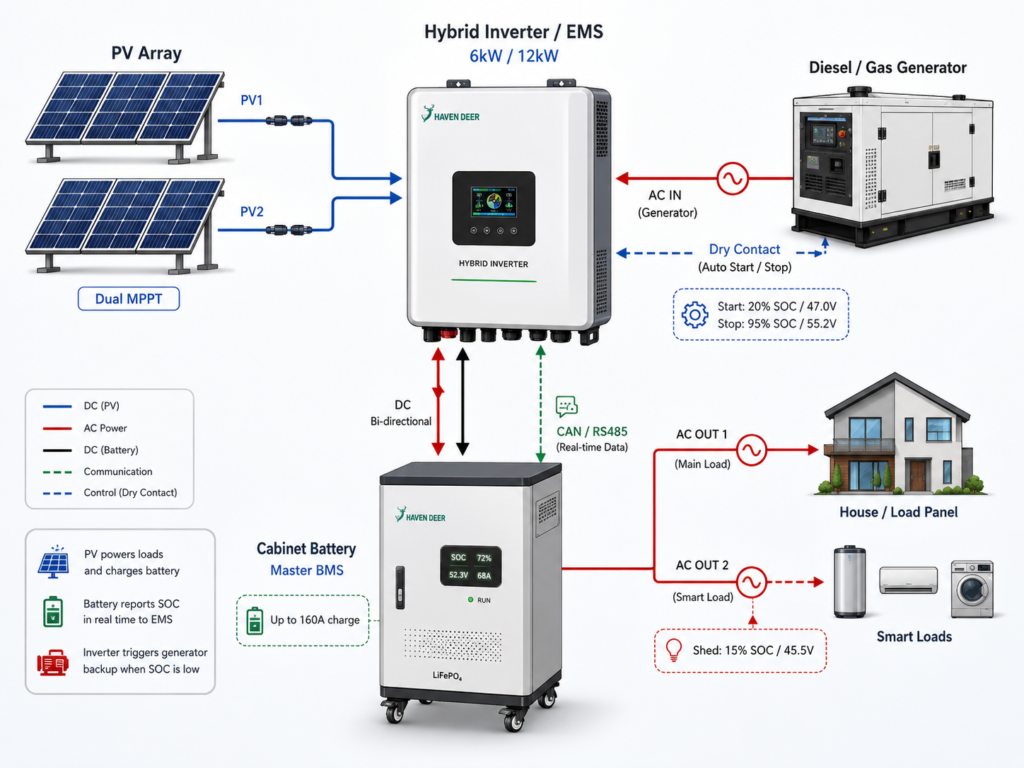

Integrating MB series floor-standing mobile cabinet batteries into a complete off-grid solar energy storage system requires coordinated power and communication integration with the hybrid inverter. Haven Deer mobile cabinet batteries are designed to communicate with compatible Haven Deer Hybrid Solar Inverters, including the ALL 486000 Pro (6kW, single MPPT) and the ALL 4812000 Pro (12kW, dual independent MPPT).
The hybrid inverter functions as the central Energy Hub. Under closed-loop CAN or RS485 communication, the Energy Management System (EMS) inside the inverter adjusts charging and discharging parameters according to battery data transmitted by the Master BMS. In Solar-Priority (SBU) mode, PV power first supplies site loads, while surplus solar energy is directed to battery charging through the inverter, with charging current capability up to 100A on the ALL 486000 Pro and up to 160A on the ALL 4812000 Pro.
5.2 Dry Contact Generator Auto-Start Threshold Settings based on Cabinet SOC
During extended cloudy periods or high winter demand, solar generation may fall short of daily site energy requirements. To support continuous power supply during extended low-solar periods, Haven Deer hybrid inverters include a passive Dry Contact relay interface for automatic generator start and stop control.
The Dry Contact signal is controlled through programmable battery State of Charge (SOC) or voltage thresholds configured in the inverter EMS settings.
| Operational Trigger | Example SOC Setpoint | Example Pack Voltage | System Action |
|---|---|---|---|
| Generator Auto-Start Trigger | 20% SOC | 47.0V DC (example setting) | Dry Contact closes and initiates the generator auto-start signal |
| Generator Auto-Stop Trigger | 95% SOC | 55.2V DC (example setting) | Dry Contact opens and stops the generator after battery charging |
| Essential Smart Load Shedding | 15% SOC | 45.5V DC (example setting) | Second AC output sheds non-essential electrical loads |
Practical Example: In an off-grid villa equipped with an ALL 4812000 Pro inverter and one MB512346 (18.0kWh) cabinet battery, nighttime household loads gradually discharge the battery. When storage drops to 20% SOC (47.0V DC), the inverter closes the Dry Contact circuit. The generator starts and supplies AC power to the inverter, allowing the inverter to support site loads while charging the battery at the configured charging current. Once the battery reaches the configured stop threshold, such as 95% SOC, the Dry Contact opens and the generator shuts down automatically.
6. Levelized Cost of Storage (LCOE) & Financial Sizing Analysis
6.1 LCOE Comparison: 51.2V Mobile Cabinet LFP vs. Traditional Lead-Acid Banks
While the initial capital expenditure (CAPEX) of a LiFePO4 mobile cabinet may be higher than traditional lead-acid battery banks, long-term cost evaluation requires comparing the total delivered energy throughout the battery lifecycle:
LCOE = Total Lifetime Cost / Total Lifetime Delivered kWh
Consider a commercial microgrid requiring 15kWh storage:
Option A: MB512300 (15.0kWh LiFePO4 Mobile Cabinet)
Initial CAPEX: Example value for calculation purposes
Usable Energy @ 80% DoD: 12.0kWh
Cycle Life: 10,000 cycles
Lifetime Throughput:
12.0kWh × 10,000 = 120,000kWh
Example LCOE Calculation:
$3,200 / 120,000kWh = $0.026/kWh
Option B: Commercial Lead-Acid AGM Bank (30.0kWh Nominal to yield 15kWh usable at 50% DoD)
Initial CAPEX: Example value for calculation purposes
Usable Energy @ 50% DoD: 15.0kWh
Cycle Life: Approximately 1,000 cycles (multiple bank replacements may be required depending on operating conditions and usage patterns)
Lifetime Throughput per bank:
15.0kWh × 1,000 = 15,000kWh
Example 10-Year Throughput Scenario:
45,000kWh based on multiple replacement cycles and assumed replacement costs
Example LCOE Calculation:
$7,200 / 45,000kWh = $0.160/kWh
Based on the example assumptions above, LiFePO4 mobile cabinet technology provides a lower calculated lifetime storage cost compared with the lead-acid alternative scenario.
6.2 Scalability Sizing: 15kWh/18kWh Base Modules to 90kWh/108kWh Parallel Array
The modular design of floor-standing mobile cabinets allows engineering contractors to expand storage capacity from single-unit systems to multi-unit commercial battery banks.
| Parallel Units | MB512300 Total Energy (15kWh Units) | MB512346 Total Energy (18kWh Units) | Continuous Discharge Current | Target Application Scenario |
|---|---|---|---|---|
| 1 Unit | 15.0kWh | 18.0kWh | 200A | Large Residential Villas / Off-grid Cabins |
| 2 Units | 30.0kWh | 36.0kWh | 400A | Agricultural Farms / Small Commercial Shops |
| 3 Units | 45.0kWh | 54.0kWh | 600A | Remote Telecom Base Stations / Light Industry |
| 4 Units | 60.0kWh | 72.0kWh | 800A | Small Manufacturing Outposts / Commercial ESS |
| 5 Units | 75.0kWh | 90.0kWh | 1000A | Off-grid Resort Microgrids / Agricultural Processing |
| 6 Units (Recommended Parallel Configuration) | 90.0kWh | 108.0kWh | 1200A | Central Off-Grid Microgrids / Infrastructure Backup |
7. Site Commissioning, Grounding, and IEC Safety Compliance
7.1 Mandatory Testing Protocols (IEC 62619, IEC 62109)
Haven Deer MB series mobile cabinet batteries are designed according to applicable battery safety requirements, with final certification and compliance requirements depending on the target market and application. Installing engineers must verify that site deployments comply with local electrical codes and applicable international standards:
IEC 62619: Defines safety requirements and test methods for industrial lithium battery systems, including relevant electrical, mechanical, and thermal safety evaluations.
IEC 62109-1 / IEC 62109-2: Defines safety requirements for power conversion equipment such as hybrid inverters used in energy storage systems.
UN 38.3: Specifies transport testing requirements for lithium battery products shipped by air, sea, or other transportation methods.
Practical Recommendation: Mechanical connections should be checked after transportation and positioning. Installers should use an appropriate torque wrench to verify DC terminal tightening according to the product installation specifications before closing main DC breakers. Loose electrical connections can increase contact resistance and cause additional heat generation during high-current operation.
7.2 Pre-Commissioning Checklist for Engineers and Installers
| Commissioning Phase | Verification Step | Pass Criteria | Installer Sign-Off |
|---|---|---|---|
| 1. Physical Inspection | Inspect cabinet enclosure, casters, and locks | No shipping damage; caster locks engaged | [ ] Passed |
| 2. Structural Verification | Verify floor load capacity | Floor structure verified for the planned cabinet array load | [ ] Passed |
| 3. Grounding (PE) | Connect Protective Earth (PE) wire to ground lug | Protective Earth connection verified according to local electrical requirements | [ ] Passed |
| 4. DC Polarity Check | Verify positive/negative cable polarities | Correct polarity; no reverse voltage | [ ] Passed |
| 5. Torque Specification | Check DC terminal bolt tightening | Torque verified according to product installation specifications | [ ] Passed |
| 6. DIP Addressing | Assign Master and Slave communication addresses according to the BMS configuration requirements | Unique communication addresses correctly configured | [ ] Passed |
| 7. BMS Communication | Connect CAN/RS485 link to hybrid inverter | Battery communication data displayed correctly on the inverter interface | [ ] Passed |
| 8. Firmware Calibration | Verify SOC baseline reading on inverter | Battery voltage and SOC readings verified between battery and inverter systems | [ ] Passed |
8. Frequently Asked Questions (Technical & Installation)
Are MB512300 and MB512346 batteries rack-mounted?
No. MB series batteries are floor-standing mobile cabinet batteries equipped with heavy-duty casters for direct floor placement and do not require 19-inch equipment racks or wall-mounted brackets.
What is the maximum recommended parallel capacity for mobile cabinet batteries?
Haven Deer recommends configuring up to 6 units in a parallel battery system, expanding total storage capacity up to 90.0kWh with MB512300 units or 108.0kWh with MB512346 units.
Can these mobile cabinet batteries be installed outdoors?
No. MB series cabinets feature an IP22 protection rating and are designed for indoor equipment rooms or protected installation environments.
What floor load capacity is required for installing an 18kWh cabinet (163kg)?
An 18.0kWh cabinet produces an estimated static floor pressure of approximately 4.57kPa (466kg/m²). Actual installation suitability should be verified according to the site-specific floor structure.
How does the BMS communicate with the Haven Deer hybrid inverter?
The Master BMS communicates with the hybrid inverter through closed-loop CAN or RS485 protocols, transmitting battery data including SOC, cell voltage, temperature, and charge/discharge current information.
What happens if ambient temperatures drop below 0°C during charging?
The BMS activates low-temperature charging protection below 0°C to prevent lithium plating risks while allowing battery discharge operation down to -20°C according to the battery specifications.
What continuous discharge current can a single cabinet supply?
Both the 15.0kWh and 18.0kWh models support up to 200A continuous discharge current, delivering approximately 10.24kW of continuous power output at 51.2V nominal voltage.
Can I mix 15kWh and 18kWh cabinets in the same parallel battery bank?
No. Parallel units within a single Master-Slave battery bank should use compatible capacity ratings, battery specifications, communication settings, and firmware configurations.
How are DIP switches configured in a 4-cabinet parallel setup?
The Master pack connected to the inverter is assigned the primary communication address, while Slave units are configured with sequential addresses according to the BMS DIP switch configuration requirements.
What warranty and cycle life performance is guaranteed?
Haven Deer battery systems include a standard 5-year warranty, with Grade A cells tested for ≥6,000 cycles at 90% DoD or ≥10,000 cycles at 80% DoD under specified test conditions.
Can the cabinet battery automatically trigger a backup generator during power outages?
Yes. When integrated with a Haven Deer hybrid inverter, the inverter’s Dry Contact relay triggers automatic generator start and stop sequences based on configured battery SOC thresholds.
Do these cabinet batteries require manual fluid or cell balancing maintenance?
No. Grade A LiFePO4 battery systems do not require routine fluid maintenance. The integrated BMS provides cell monitoring and balancing functions to maintain stable operation across the 16S cell configuration.
